LIMOSS MD201 4000 N Motor – Reference 451718

WARNING:

Stroke: head = 74 mm ; foot = 69 mm

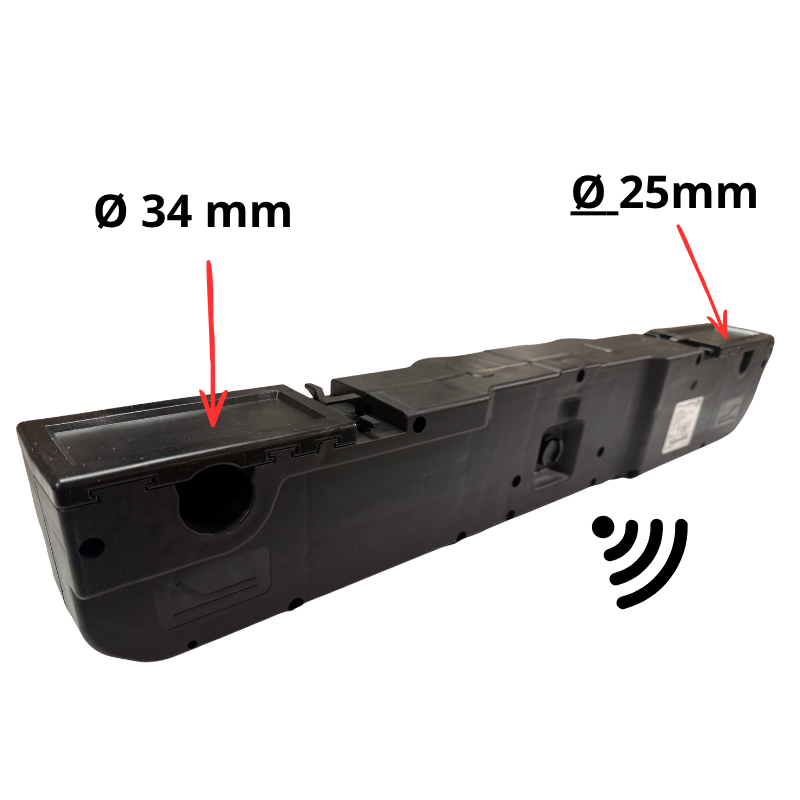

Ø head bar 34 mm and Ø foot bar 25 mm

Power supply sold separately (MC120)

Integrated RF remote control receiver

Here is the MD201 motor for an adjustable bed base from the Limoss brand.

• Black housing color RAL 9005

• Maximum continuous operation: 2 minutes with an 18-minute pause

• DC motors

• Very low standby power consumption

• End-of-travel switching by micro-switch

• Maintenance-free

• Position detection using a Hall effect sensor

• Power supply sold separately

• Mechanical quick release

Motor specifications to check before replacement:

Mains connection: 100 - 240 V AC

• Head lifting force: 4000 N

• Foot lifting force: 4000 N

• Shaft housing Ø 25 at the foot and Ø 34 mm at the head

• Installation height: 114.00 mm

• Emergency lowering battery: 18 V

• Strokes: head = 74 mm ; foot = 69 mm

• Protection class II / III

• Installation length: 581 mm (± 2 mm)

Replacing the motor

To replace the motor on your bed base, simply remove the motor covers in order to replace the old motor with the new one. Then, reinstall the motor covers and reconnect the power supply and the remote control.

Warning: the bed base must be in a horizontal position during replacement, and the motor must be disconnected from the power supply before any handling.
