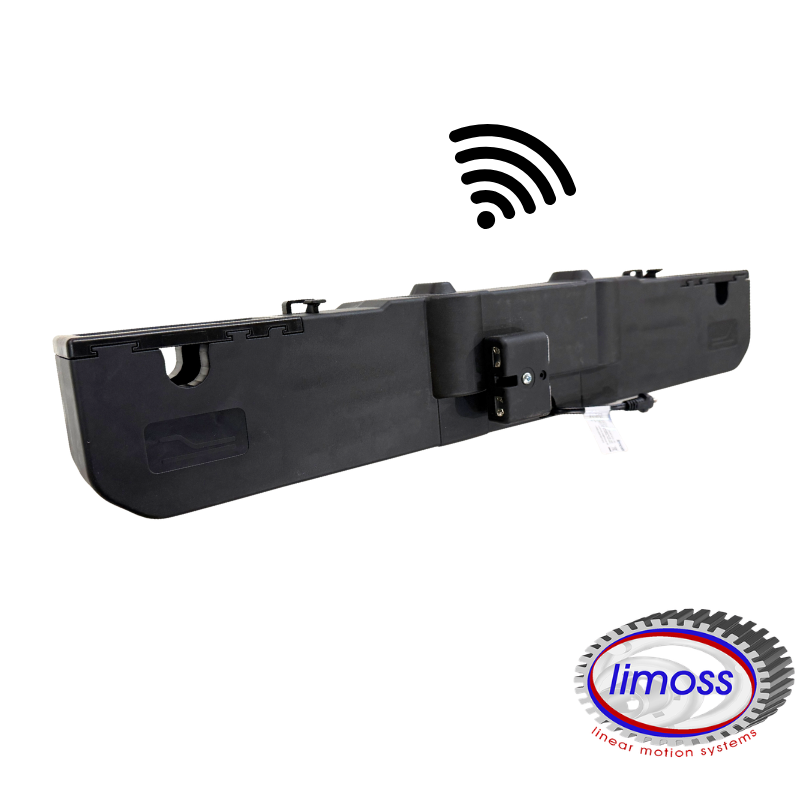

MD200 motor LIMOSS 4500 N 450899

Motor MD200 LIMOSS 2 x 4500 N, reference 450899

Stroke lengths: head = 87 mm; foot = 69 mm

This motor features a DIN HP socket for connecting an additional motor.

RF motor with integrated radio receiver for wireless remote controls (sold separately on our website, HC315 model with 9 buttons).

Please note: the transformer is sold separately for this motor (MC120 model).

Here is the MD200 motor for adjustable bed bases from the Limoss brand.

• Black housing color RAL 9005

• Maximum continuous operation: 2 minutes with an 18-minute pause

• DC motors

• Very low standby power consumption

• End-of-travel switching via micro-switch

• Maintenance-free

• Position detection using a Hall effect sensor

• Internal power supply

• Mechanical quick release

Motor specifications to check before replacement:

• Mains connection: 100–240 V AC

• Head pushing force: 4500 N

• Foot pushing force: 4500 N

• Shaft housing Ø 25

• Installation height: 114.00 mm

• Emergency lowering: 18 V battery

• Head / foot stroke: 87 / 69 mm

• Protection class II / III

• Installation length: 581 mm ± 2 mm (distance between the centers of the 2 bars)

Motor replacement

To replace your adjustable bed motor, simply remove the motor covers in order to replace the old motor with the new one. Then, reinstall the covers and reconnect the power supply and the remote control.

Warning: the bed base must be in a horizontal position when carrying out the replacement, and the motor must be disconnected from the power supply before any handling.
