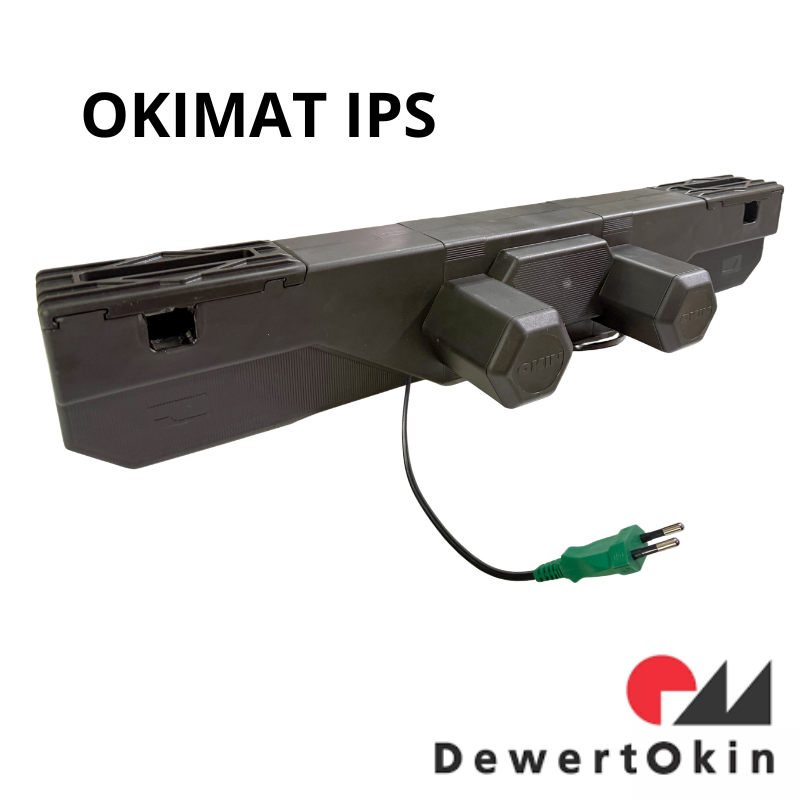

Motor OKIMAT IPS DEWERT OKIN (Grade-down motor)

Grade-down motor: BRAND NEW motor which may have minor scratches; all motors are checked before dispatch.

OKIMAT IPS Engine for Adjustable Bed Base

1) General Presentation:

This Dewert Okin motor is suitable for replacing various bed base motors.

The following specifications must match with your motor.

2) Key Features:

• C1 Thrust force    :  6000 N
• C2 bar spacing     :  581 mm +/- 2 mm
• C3 bar diameter   :  25 mm
• C4 cylinder strokes          :  69 / 87 mm

3) Other Features :

• Power cable included
• Reduced electromagnetic emissions
• Quiet operation
• Protection rating: IP 43
• TÜV certified
• Standby power consumption ≤ 0.2 W
• Emergency descent with the insertion of a 9 V battery block
• Motor color: Black
• Operating temperature: +5° to +40
• Protection class: Class II

4) Compatibility :

• COMPACT, DEWERT, GERMANY Motion, LIMOSS, OKIN, SEUD, VIBRADORM, UMEC ..

5) Remote Control:

• Remote control not included 5-pin socket for Okin Deweart remote controls such as:
• Baseline Remote Control Reference 1762
• TopLine Remote Control Reference 1763

6) Motor Replacement :

• To replace the motor of your bed base, simply remove the motor covers to replace it in the same location as the old one. Then, reattach the covers on the motors and connect the power supply and remote control

We remain at your disposal for any additional information.
