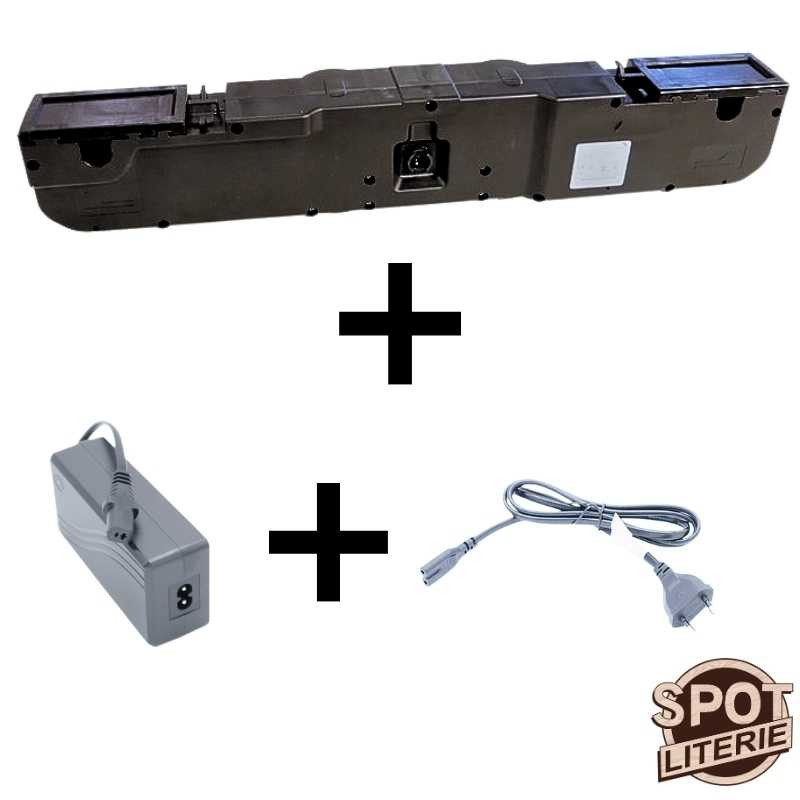

MD201 LIMOSS 4000 N motor pack with power supply unit and cable

MD201 451646 LIMOSS 2X4000N motor:

Limoss reference:  451646

Please note that this motor is only suitable for bar diameters measuring 34 mm.

This is the MD 201 motor for liftable bed bases from Limoss.

    Black housing colour RAL 9005
    Max. continuous use 2 min with an 18 min break
    Direct current motors
    Very low standby consumption
    Limit switch via micro switch
    Maintenance-free
    Position detection using a Hall effect sensor
    Internal power supply
    Mechanical quick release


Motor specifications to be checked before replacement:

Mains connection 100 - 240 V AC
    Head thrust force 4,000 N
    Foot thrust force 4,000 N
    Shaft housing Ø 34 mm
    Installation height 114.00 mm
    Emergency lowering 18 V battery
    Strokes: head=74 mm; feet=69 mm
    Protection class II / III
    Installation length 581 mm (± 2 mm)
    Dynamic locking force 4,000 N

Power supply unit:

■ Input voltage 100–240 V AC

■ Output voltage 24 V DC / 29 V DC / 35 V DC

■ Output current 1.0 to 2.1 A

■ Protection via NTC temperature sensor, primary fuse, overload protection, overcurrent shutdown, short-circuit-proof output

■ Protection type IP20

■ Protection class II

■ Intermittent operation with 10% duty cyclefor continuous operation of max. 2 min.

■ LED operating indicator (green)

■ Complies with the Ecodesign Directive2009/125/EC

■ LED operating indicator (green)

■ Complies with the Ecodesign Directive2009/125/EC

■ Secondary side coupling

Power supply cable:

Cable for connecting the Limoss MC120 unit to the mains power supply.

Replacing the motor

To replace the motor in your bed base, simply remove the motor covers and replace the old motor with the new one. Then, all you have to do is replace the covers on the motors and connect the power supply and remote control.

Please note: the bed base must be in a horizontal position to carry out the replacement and the motor must be disconnected from the power supply before any work is carried out.

Please do not hesitate to contact us for any further information.
