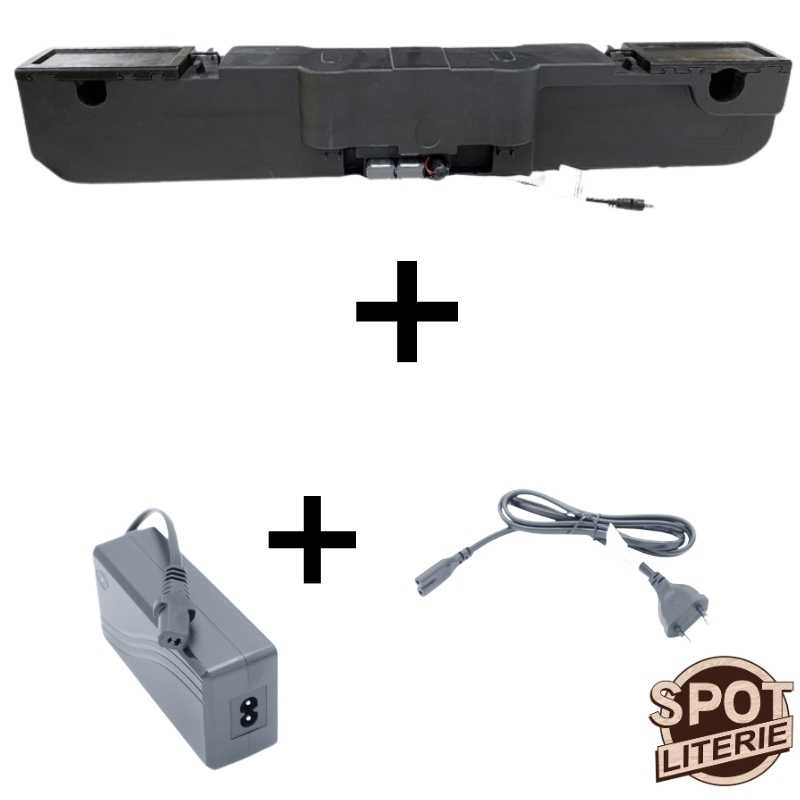

MD201 LIMOSS 4000 N motor pack with power supply unit and cable

MD201 LIMOSS 2X4000N motor:

Limoss reference: 451777

PLEASE NOTE:

Non-standard stroke: head=74 mm; feet=69 mm

Head bar Ø 34 mm and foot bar Ø 25 mm

This is the MD201 motor for liftable bed bases from Limoss.

Black RAL 9005 housing colour

Max. continuous use 2 min with an 18 min break

Direct current motors

Very low standby consumption

Limit switch via micro switch

Maintenance-free

Position detection using a Hall effect sensor

Internal power supply

Mechanical quick release

Motor specifications to be checked before replacement:

Mains connection 100 - 240 V AC

Head thrust force 4000 N

Foot thrust force 4000 N

Shaft housing Ø 25 at the feet and Ø 34 mm at the head

Installation height 114.00 mm

Emergency lowering 18 V battery

Strokes: head = 74 mm; feet = 69 mm

Protection class II / III

Installation length 581 mm (± 2 mm)

Power supply unit:

■ Input voltage 100–240 V AC

■ Output voltage 24 V DC / 29 V DC / 35 V DC

■ Output current 1.0 to 2.1 A

■ Protection via NTC temperature sensor, primary fuse, overload protection, overcurrent shutdown, short-circuit-proof output

■ Protection type IP20

■ Protection class II

■ Intermittent operation with 10% duty cyclefor continuous operation of max. 2 min.

■ LED operating indicator (green)

■ Complies with the Ecodesign Directive2009/125/EC

■ LED operating indicator (green)

■ Complies with the Ecodesign Directive2009/125/EC

■ Secondary side coupling

Power supply cable:

Cable for connecting the Limoss MC120 unit to the mains power supply.

Replacing the motor

To replace the motor in your bed base, simply remove the motor covers and replace the old motor with the new one. Then, all you have to do is replace the covers on the motors and connect the power supply and remote control.

Please note: the bed base must be in a horizontal position to carry out the replacement and the motor must be disconnected from the power supply before any work is carried out.

Please do not hesitate to contact us for any further information.
