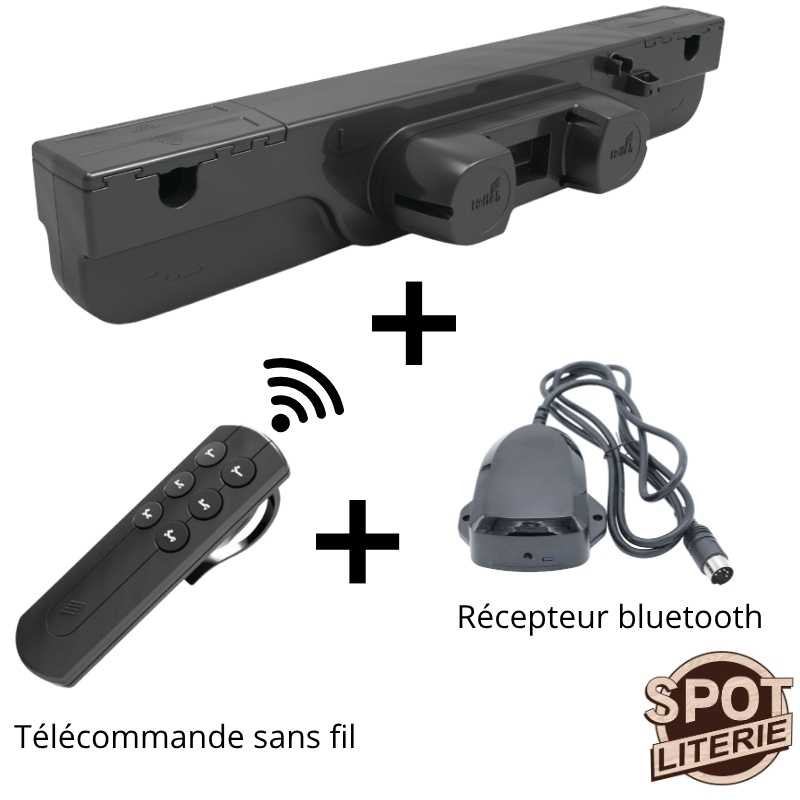

Motor pack with wireless remote control & AXISDRIVE HETTICH Bluetooth receiver

AXISDRIVE HETTICH 4500 IPSe motor for slatted bed

General presentation:

Référence Hettich : 2.64.204.02.20

This AXISDRIVE 4500 IPSe motor from Hettich can be used to replace many bed motors. There are some important parameters to take into account to check the compatibility with your current motor. This information is in red in the manufacturer's technical parameters below.


Manufacturer's technical parameters:
    - Reduced electromagnetic emission thanks to the integrated SMPS power supply
    - Protection class: IP 43
    - Certified by TÜV and tested according to DIN EN 1725 and RAL-GZ 430/5
    - Standby power consumption of ≤ 0.5 W

Thrust forces:
     - 2 x 4500 N

     - Speed: 5 mm / sec without load
     - Strokes: standard 87 mm / 69 mm
     - Mounting distance: 581 mm
     - Suitable for bars of 25 mm diameter
     - Emergency lowering by inserting a 9 V battery pack
     - Motor color: Black

Operating temperature: +5° to +40°.
Protection class: Class II
Duty cycle: 2 mn operation / 18mn rest (10%)

Dimensions (motor):

- length: 707 mm

- width : 147 mm

- height : 120 mm

Wireless remote control: INCLUDED IN THE PACKAGE

Référence Hettich :  2 64 001 01 20

This wireless remote control for lift-up bed bases is used for Hettich axisdrive motors. It has 6 buttons and comes with a hook so that it can be attached to your lift-up bed base.

Batteries for the remote control are included.

Radio receiver: INCLUDED IN THE PACKAGE

Référence Hettich : 2.64.002.04.20

It is also possible to control your lift-up bed using the ‘Axisdrive bed control’ app, available on Google Play and the Apple Store.

The adapter connects via a 5-pin DIN plug.

The replacement of the motor

To replace the motor of your bed frame, you will simply remove the covers of the motors to put it in place of the old one. Then, you will only have to put the covers back on the motors and connect the power supply and the remote control.


Attention: the bed base must be in horizontal position to make the change and the motor must be cut from the power supply before any manipulation.





We remain at your disposal for any further information.
