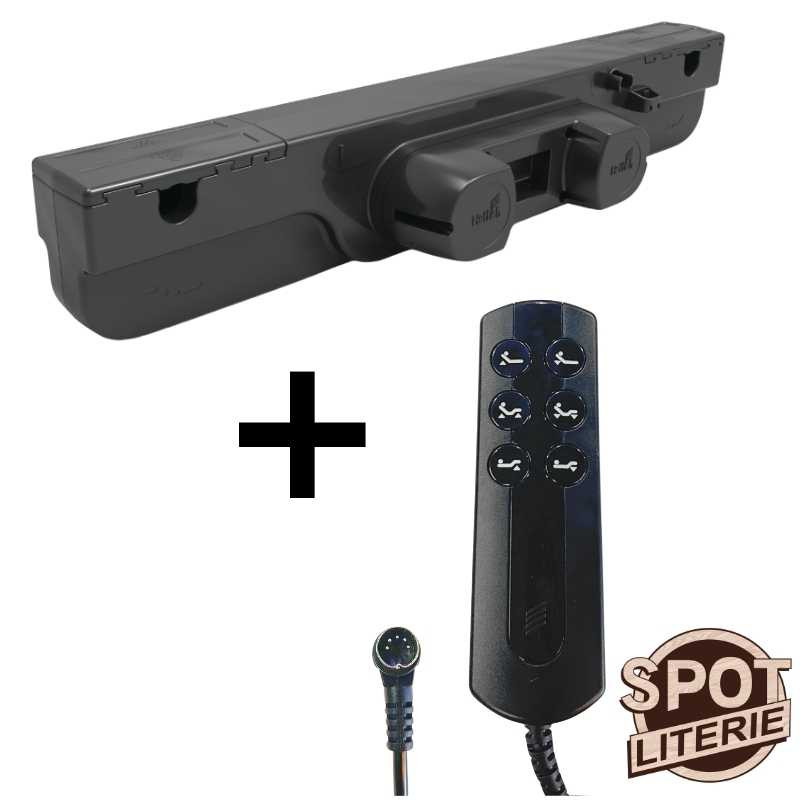

HETTICH AXISDRIVE IPSe motor and wired remote control pack

AXISDRIVE HETTICH 4500 IPSe motor for slatted bed

General presentation:

Hettich reference : 2.64.204.02.20

This AXISDRIVE 4500 IPSe motor from Hettich can be used to replace many bed motors. There are some important parameters to take into account to check the compatibility with your current motor. This information is in red in the manufacturer's technical parameters below.


Manufacturer's technical parameters:
    - Reduced electromagnetic emission thanks to the integrated SMPS power supply
    - Protection class: IP 43
    - Certified by TÜV and tested according to DIN EN 1725 and RAL-GZ 430/5
    - Standby power consumption of ≤ 0.5 W

Thrust forces:
     - 2 x 4500 N

     - Speed: 5 mm / sec without load
     - Strokes: standard 87 mm / 69 mm
     - Mounting distance: 581 mm
     - Suitable for bars of 25 mm diameter
     - Emergency lowering by inserting a 9 V battery pack
     - Motor color: Black

Operating temperature: +5° to +40°.
Protection class: Class II
Duty cycle: 2 mn operation / 18mn rest (10%)

Dimensions (motor):

- Length: 707 mm

- Width: 147 mm

- Height: 120 mm

HETTICH ECO AXISDRIVE IPSe wired remote control: INCLUDED IN THE PACKAGE

HETTICH reference 2.64.001.02.20

This wired remote control for lift-up bed bases is mainly used for Hettich axisdrive IPSe 4500 or axisdrive IPS 4500 / 6500 motors. It has 6 buttons and comes with a hook so that it can be attached to your lift-up bed base.

To connect your eco axisdrive IPSe wired remote control, simply insert it into the socket provided in the motor (DIN 5 plugs).

Please note: The remote control must be connected in a specific direction; make sure that the 5 pins are aligned correctly.

The replacement of the motor


To replace the motor of your bed frame, you will simply remove the covers of the motors to put it in place of the old one. Then, you will only have to put the covers back on the motors and connect the power supply and the remote control.


Attention: the bed base must be in horizontal position to make the change and the motor must be cut from the power supply before any manipulation.

Replacing the motor

To replace the motor in your bed base, simply remove the motor covers and replace the old motor with the new one. Then, all you have to do is replace the motor covers and connect the power supply and remote control.

Please note: the bed base must be in a horizontal position to carry out the replacement and the motor must be disconnected from the power supply before any work is carried out.

We remain at your disposal for any further information.
