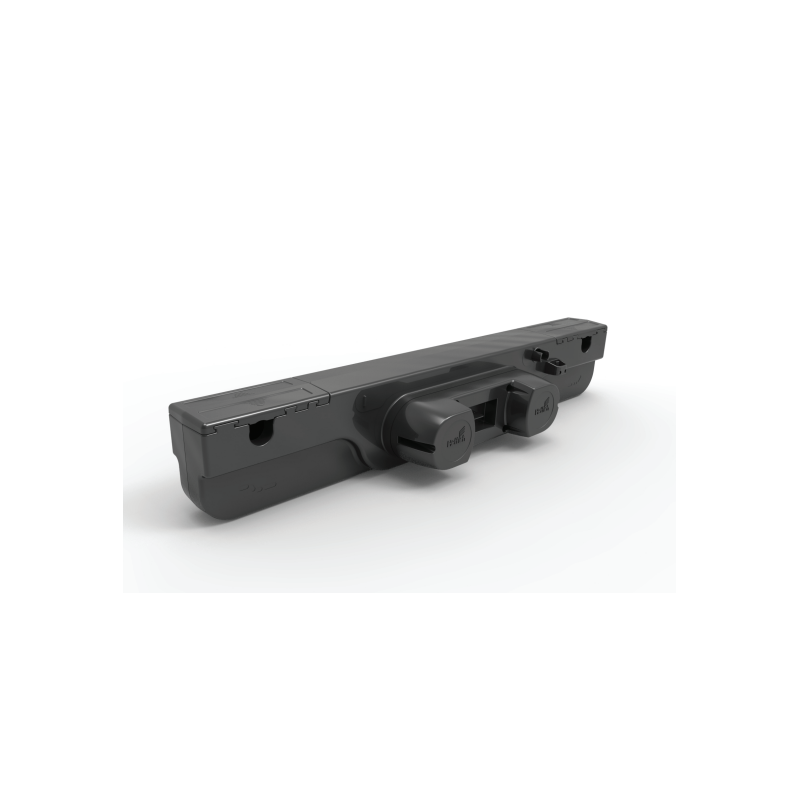

AXISDRIVE HETTICH 6500 IPS motor

AXISDRIVE HETTICH 6500 IPS motor for slatted bed

General presentation:

This AXISDRIVE 6500 IPS motor from Hettich can be used to replace many bed motors. There are some important parameters to take into account to check the compatibility with your current motor. This information is in red in the manufacturer's technical parameters below.


Manufacturer's technical parameters:
    - Reduced electromagnetic emission thanks to the integrated SMPS power supply
    - Protection class: IP 43
    - Certified by TÜV and tested according to DIN EN 1725 and RAL-GZ 430/5
    - Standby power consumption of ≤ 0.5 W

Thrust forces:
     - 2 x 6500 N

     - Speed: 5 mm / sec without load
     - Strokes: standard 87 mm / 69 mm
     - Mounting distance: 581 mm
     - Suitable for bars of 25 mm diameter
     - Emergency lowering by inserting a 9 V battery pack
     - Motor color: Black

Operating temperature: +5° to +40°.
Protection class: Class II
Duty cycle: 2 mn operation / 18mn rest (10%)


Remote control :

Compatible with the Hettich Axisdrive wired remote control sold on our site


The replacement of the motor


To replace the motor of your bed frame, you will simply remove the covers of the motors to put it in place of the old one. Then, you will only have to put the covers back on the motors and connect the power supply and the remote control.


Attention: the bed base must be in horizontal position to make the change and the motor must be cut from the power supply before any manipulation.


Dimensions (see photo 2):

- length: 707 mm

- width : 147 mm

- height : 120 mm


Wired and radio remote control sold separately on our site.

Here are some examples of brands that can be compatible (after checking the previous parameters):

COMPACT, DEWERT, GERMANY Motion, LIMOSS, OKIN, SEUD, VIBRADORM, UMEC .


We remain at your disposal for any further information.
