MD200 motor LIMOSS 450131

MD200 motor LIMOSS 4000 N 450131

2x4000N

87/69 mm

5 DIN plug

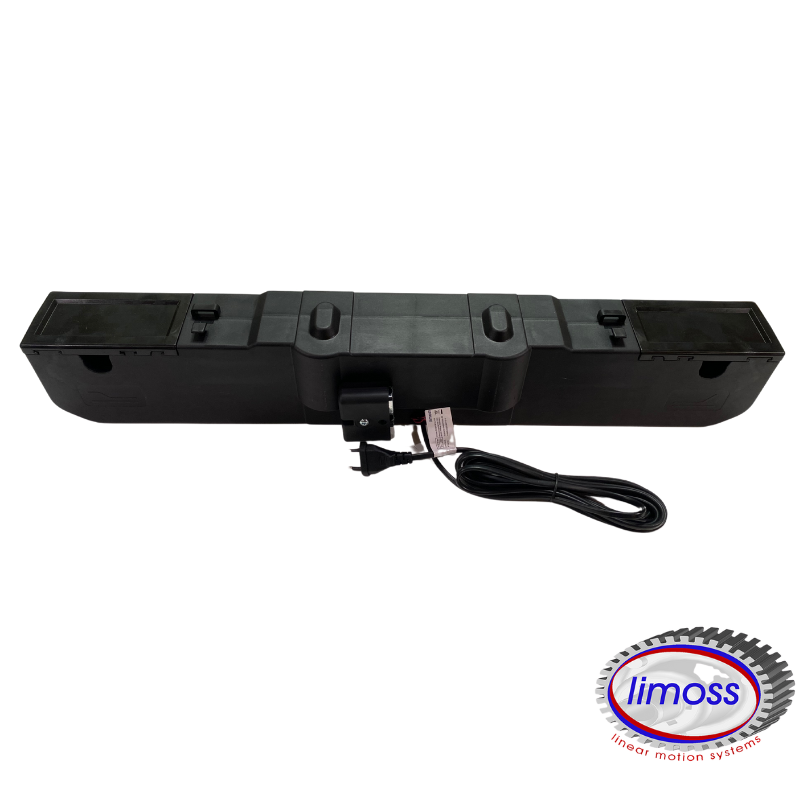

This is the MD 200 motor for the Limoss box spring.

    Housing colour black RAL 9005
    Continuous operation max. 2 min with a pause of 18 min
    DC motors
    Very low standby consumption
    Limit switch with micro-switch
    Maintenance-free
    Position detection by Hall-effect sensor
    Internal power supply
    Mechanical quick release


Motor characteristics to be checked before replacement:

Mains connection 100 - 240 V AC
    Head thrust force 4000 N
    Foot thrust force 4000 N
    Shaft housing Ø 25
    Installation height 114.00 mm
    Emergency lowering 18 V battery
    Travel 69 74 mm
    Protection class II / III
    Installation length 581 mm (± 2 mm)

DIN 5-pin plug
